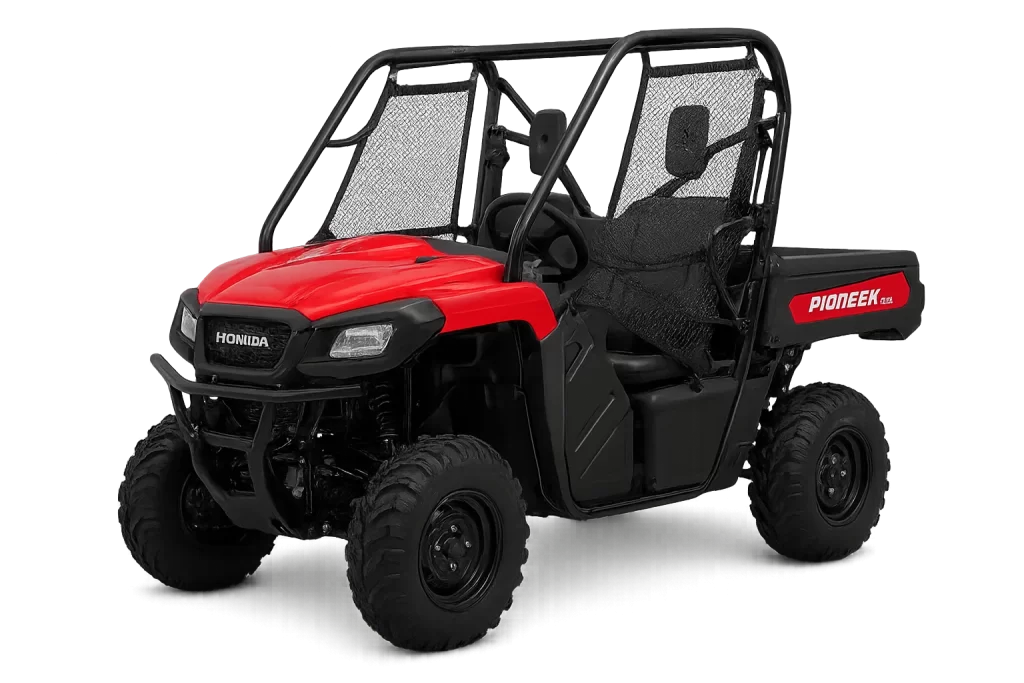

Honda Pioneer 520 – Compact, Capable, and Built for Work
The Honda Pioneer 520 is the ideal utility vehicle for tight farm tracks and busy yards. Its 518cc fuel-injected engine delivers dependable power, while the compact design and smooth automatic transmission make it easy to manoeuvre where larger UTVs can’t. With a tilting cargo bed, rugged suspension, and Honda’s proven durability, it’s ready to haul, tow, and tackle the daily grind in all weathers.
Our manufacturer’s warranty keeps you moving.

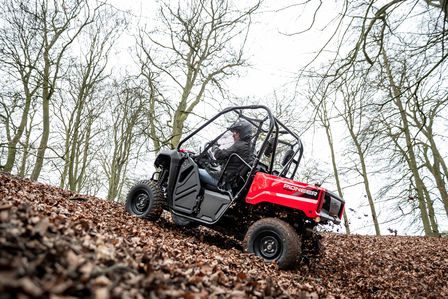

You can rely on your Honda Pioneer for everything from gamekeeping to snow cleaning – in all weather, on all terrains. When you’re counting on it for such a wide range of jobs, the last thing you need is an unexpected problem. Luckily, it’s also the thing you can expect. Every Honda Pioneer comes with an equally reliable, industry-leading Honda manufacturer’s warranty, which guarantees the build quality of your vehicle.
Specification | Details |
---|---|
Classification | Side X Side |
Engine | 518cc liquid cooled single cylinder four-stroke |
Carburation | Electronic fuel injection (PGM-FI), 36mm throttle body |
Ignition | Full-transistorized type with electronic advance |
Starter | Electric |
Transmission | Five-speed automatic transmission with AT/MT modes with paddle shifting and reverse. Two drive modes include 2WD and 4WD |
Drive | Direct front and rear driveshafts |
Front Suspension | Independent double-wishbone; 5.8 inches of travel |
Rear Suspension | Independent double-wishbone with preload adjustability; 5.9 inches of travel |
Power Steering | No |
Front Brakes | Dual 200mm hydraulic discs |
Rear Brake | 170mm hydraulic disc |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-12 |
Fuel Capacity (l) | 15.5L incl. 4.2L reserve |
Bore x Stroke (mm) | 96.0mm x 71.5mm |
Dimensions - Length (mm) | 2667 |
Dimensions - Width (mm) | 1270 |
Dimensions - Height (mm) | 1808 |
Wheelbase (mm) | 1854 |
Seat Height (mm) | 703 |
Ground Clearance (mm) | 216 |
Towing Capacity (kg) | 454 |
Front Rack Capacity (kg) | N/A |
Rear Rack Capacity (kg) | 204 (Bed Capacity) |
Specification | Details |
---|---|
Classification | Heavy duty ATV |
Engine | 518cc Liquid-cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorized with electronic advance |
Starter | Electric |
Transmission | Auto clutch with manual shift |
Drive | 4wd Direct drive-shafts with TraxLok® switchable 2wd/4wd and locking front differential |
Front Suspension | Independent double wishbone; 185mm travel |
Rear Suspension | Dual A-Arm (IRS); 215mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 170mm single hydraulic disc |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 14.7L, incl. 4.9L res. |
Bore x Stroke (mm) | 96.0 x 71.5 |
Dimensions - Length (mm) | 2185 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1240 |
Wheelbase (mm) | 1293 |
Seat Height (mm) | 919 |
Ground Clearance (mm) | 251 |
Towing Capacity (kg) | 599 |
Front Rack Capacity (kg) | 99 pounds |
Rear Rack Capacity (kg) | 187 pounds |
Specification | Details |
---|---|
Classification | Heavy duty ATV |
Engine | 518cc Liquid-cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorised with electronic advance |
Starter | Electric |
Transmission | Automatic Dual Clutch Transmission; 5 speed + reverse and high/low |
Drive | 4wd Direct drive-shafts with TraxLok® switchable 2wd/4wd and locking front differential |
Front Suspension | Independent Double wishbone; 185mm travel |
Rear Suspension | Dual A-Arm (IRS); 215mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 170mm single hydraulic disc |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 14.7L, incl. 4.9L res. |
Bore x Stroke (mm) | 96.0 x 71.5 |
Dimensions - Length (mm) | 2185 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1237 |
Wheelbase (mm) | 1293 |
Seat Height (mm) | 922 |
Ground Clearance (mm) | 248 |
Towing Capacity (kg) | 599 |
Front Rack Capacity (kg) | 99 pounds |
Rear Rack Capacity (kg) | 187 pounds |
Specification | Details |
---|---|
Classification | Heavy duty ATV |
Engine | 518cc liquid cooled, wet-sump, longitudinally mounted OHV four-stroke single-cylinder |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorised with electronic advance |
Starter | Electric |
Transmission | Auto clutch with manual shift; 5 speed and reverse |
Drive | 4wd Direct driveshafts with TraxLok™ switchable 2wd/4wd and locking front differential. |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Swingarm with single shock; 185mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 170mm sealed mechanical drum |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 14.7L, incl. 4.9L res. |
Bore x Stroke (mm) | 96.0 x 71.5 |
Dimensions - Length (mm) | 2185 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1237 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 924 |
Ground Clearance (mm) | 248 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 99 pounds |
Rear Rack Capacity (kg) | 187 pounds |
Specification | Details |
---|---|
Classification | Heavy duty ATV |
Engine | 518cc liquid cooled, wet-sump, longitudinally mounted OHV single-cylinder four-stroke |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorised with electronic advance |
Starter | Electric |
Transmission | Auto clutch with electric shift; 5 speed and reverse |
Drive | 4wd direct drive-shafts with TraxLok® switchable 2wd/4wd and locking front differential |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Swingarm with single shock; 185mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 14.7L, incl. 4.9L res. |
Bore x Stroke (mm) | 96.0 x 71.5 |
Dimensions - Length (mm) | 2103 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1220 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 869 |
Ground Clearance (mm) | 190 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 99 pounds |
Rear Rack Capacity (kg) | 187 pounds |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorised with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Automatic Dual Clutch Transmission (DCT) with auto-shifting or electric shift |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Dual A-Arm (IRS); 215mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | Single hydraulic 170mm disc |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.9L, incl. 4.9L reserve. |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2146 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1203 |
Wheelbase (mm) | 1295 |
Seat Height (mm) | 901 |
Ground Clearance (mm) | 246 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorised with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Front and rear driveshafts with TraxLok™ and torque-sensing front differential. |
Front Suspension | Independent double-wishbone; 170mm travel |
Rear Suspension | Swingarm with single shock; 170mm travel |
Power Steering | No |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.9L, incl. 4.9L reserve. |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2103 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1174 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 855 |
Ground Clearance (mm) | 183 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorised with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Front and rear driveshafts with TraxLok™ and torque-sensing front differential. |
Front Suspension | Independent double-wishbone; 170mm travel |
Rear Suspension | Swingarm with single shock; 170mm travel |
Power Steering | No |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.9L, incl. 4.9L reserve. |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2103 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1174 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 855 |
Ground Clearance (mm) | 183 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorised with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Automatic Dual Clutch Transmission (DCT) with auto-shifting or electric shift |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Dual A-Arm (IRS); 215mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | Single hydraulic 170mm disc |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.9L, incl. 4.9L reserve |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2146 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1203 |
Wheelbase (mm) | 1295 |
Seat Height (mm) | 901 |
Ground Clearance (mm) | 246 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorized with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Front and rear driveshafts with TraxLok™ and torque-sensing front differential. |
Front Suspension | Independent double-wishbone; 170mm travel |
Rear Suspension | Swingarm with single shock; 170mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.7L, incl. 4.9L reserve. |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2103 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1176 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 855 |
Ground Clearance (mm) | 183 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
