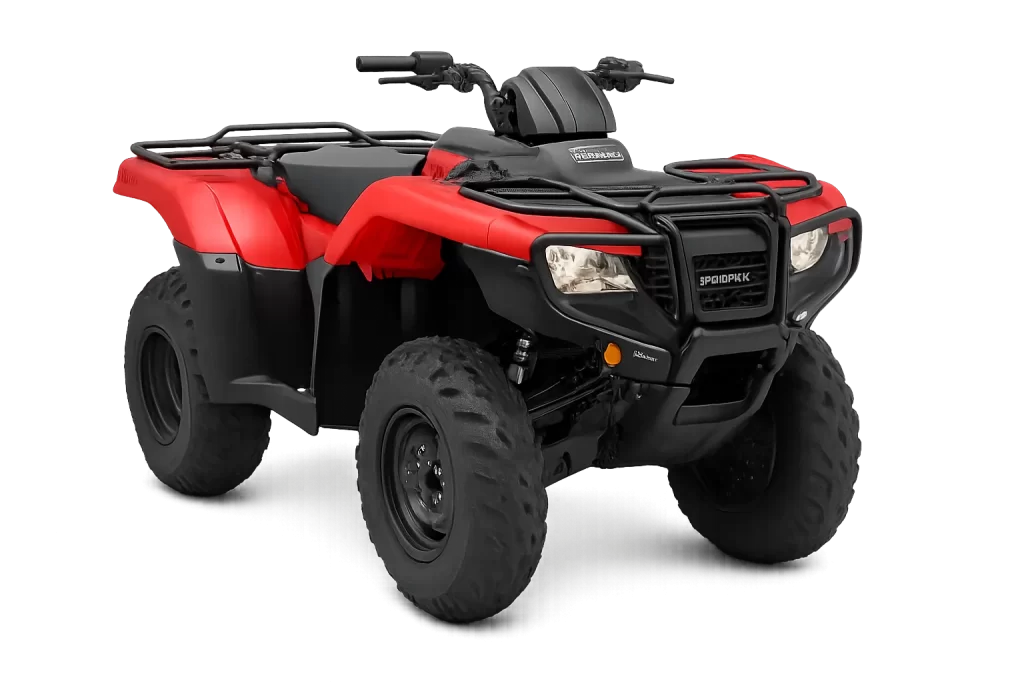

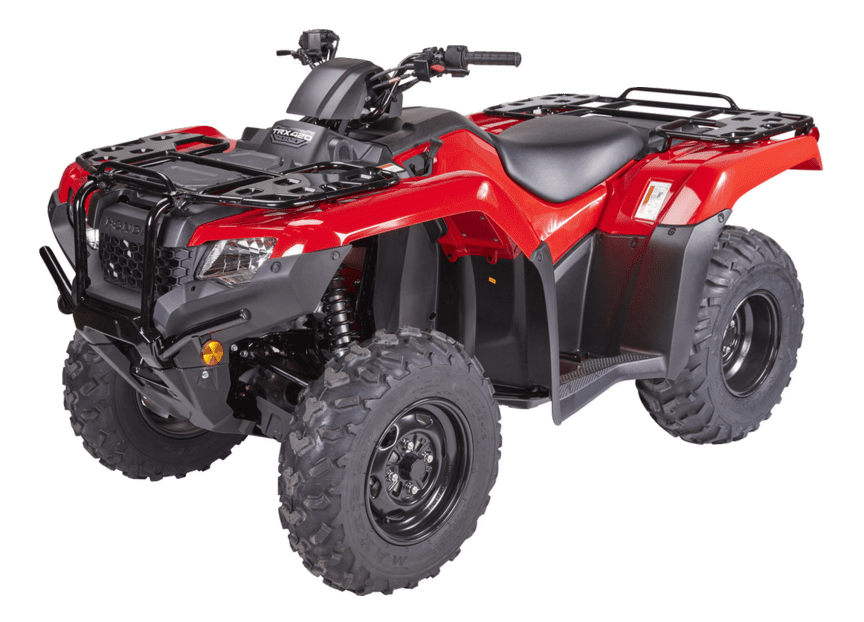

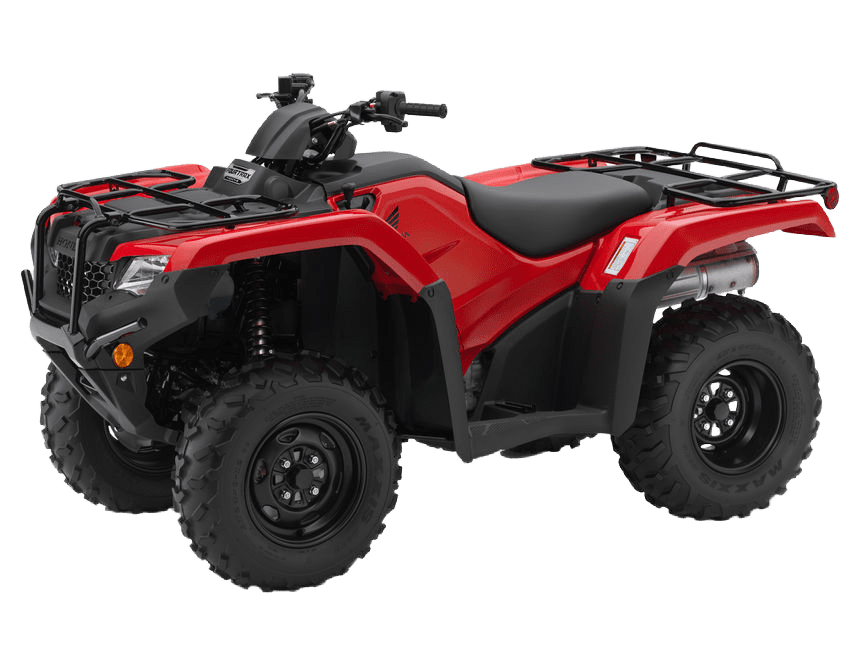

Honda TRX420 Fourtrax

For Full Specifications and Available Models, Please Consult the Brochure

Honda TRX420 Fourtrax – The Reliable Workhorse
When the job needs doing, the Honda TRX420 Fourtrax won’t let you down. Its 420cc fuel-injected engine delivers steady power for towing, hauling, and tackling the toughest ground on the farm. Built with a strong chassis, proven suspension, and Honda’s unmatched reliability, it’s made to handle long days, heavy loads, and hard work in all weathers.

BROCHURE
Facebook Twitter Linkedin

PRIVACY | TERMS

© 2025 - Rafferty Newman (Machinery) Ltd

Tel: 01730 264484

Website Design - Hypersonic IT Ltd

TRX420 4x4 AT IRS EPS

5fwd/1rev automatic and electric shift (ESP)

Specification Details
ClassificationUtility work ATV
Engine420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder
CarburationPGM-FI 34mm
IgnitionFull transistorised with electronic advance
StarterElectric/Recoil
TransmissionAutomatic ESP push-button; 5 speed and reverse
DriveAutomatic Dual Clutch Transmission (DCT) with auto-shifting or electric shift
Front SuspensionIndependent double-wishbone; 185mm travel
Rear SuspensionDual A-Arm (IRS); 215mm travel
Power SteeringYes
Front Brakes190mm dual hydraulic discs
Rear BrakeSingle hydraulic 170mm disc
Front tyres24 x 8-12
Rear tyres24 x 10-11
Fuel Capacity (l)14.9L, incl. 4.9L reserve.
Bore x Stroke (mm)86.5 x 71.5
Dimensions - Length (mm)2146
Dimensions - Width (mm)1204
Dimensions - Height (mm)1203
Wheelbase (mm)1295
Seat Height (mm)901
Ground Clearance (mm)246
Towing Capacity (kg)384
Front Rack Capacity (kg)33 pounds
Rear Rack Capacity (kg)66 pounds

TRX420 4x4 AT EPS

5fwd/1rev automatic and electric shift (ESP)

Specification Details
ClassificationUtility work ATV
Engine420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder
CarburationPGM-FI 34mm
IgnitionFull transistorised with electronic advance
StarterElectric/Recoil
TransmissionAutomatic ESP push-button; 5 speed and reverse
DriveFront and rear driveshafts with TraxLok™ and torque-sensing front differential.
Front SuspensionIndependent double-wishbone; 170mm travel
Rear SuspensionSwingarm with single shock; 170mm travel
Power SteeringNo
Front Brakes190mm dual hydraulic discs
Rear Brake160mm sealed mechanical drum
Front tyres24 x 8-12
Rear tyres24 x 10-11
Fuel Capacity (l)14.9L, incl. 4.9L reserve.
Bore x Stroke (mm)86.5 x 71.5
Dimensions - Length (mm)2103
Dimensions - Width (mm)1204
Dimensions - Height (mm)1174
Wheelbase (mm)1270
Seat Height (mm)855
Ground Clearance (mm)183
Towing Capacity (kg)384
Front Rack Capacity (kg)33 pounds
Rear Rack Capacity (kg)66 pounds

TRX420 4x4 ES

5fwd/1rev automatic and electric shift (ESP)

Specification Details
ClassificationUtility work ATV
Engine420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder
CarburationPGM-FI 34mm
IgnitionFull transistorised with electronic advance
StarterElectric/Recoil
TransmissionAutomatic ESP push-button; 5 speed and reverse
DriveFront and rear driveshafts with TraxLok™ and torque-sensing front differential.
Front SuspensionIndependent double-wishbone; 170mm travel
Rear SuspensionSwingarm with single shock; 170mm travel
Power SteeringNo
Front Brakes190mm dual hydraulic discs
Rear Brake160mm sealed mechanical drum
Front tyres24 x 8-12
Rear tyres24 x 10-11
Fuel Capacity (l)14.9L, incl. 4.9L reserve.
Bore x Stroke (mm)86.5 x 71.5
Dimensions - Length (mm)2103
Dimensions - Width (mm)1204
Dimensions - Height (mm)1174
Wheelbase (mm)1270
Seat Height (mm)855
Ground Clearance (mm)183
Towing Capacity (kg)384
Front Rack Capacity (kg)33 pounds
Rear Rack Capacity (kg)66 pounds

TRX420 4x4

5fwd/1rev manual foot-shift

Specification Details
ClassificationUtility work ATV
Engine420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder
CarburationPGM-FI 34mm
IgnitionFull transistorised with electronic advance
StarterElectric/Recoil
TransmissionAutomatic ESP push-button; 5 speed and reverse
DriveAutomatic Dual Clutch Transmission (DCT) with auto-shifting or electric shift
Front SuspensionIndependent double-wishbone; 185mm travel
Rear SuspensionDual A-Arm (IRS); 215mm travel
Power SteeringYes
Front Brakes190mm dual hydraulic discs
Rear BrakeSingle hydraulic 170mm disc
Front tyres24 x 8-12
Rear tyres24 x 10-11
Fuel Capacity (l)14.9L, incl. 4.9L reserve
Bore x Stroke (mm)86.5 x 71.5
Dimensions - Length (mm)2146
Dimensions - Width (mm)1204
Dimensions - Height (mm)1203
Wheelbase (mm)1295
Seat Height (mm)901
Ground Clearance (mm)246
Towing Capacity (kg)384
Front Rack Capacity (kg)33 pounds
Rear Rack Capacity (kg)66 pounds

TRX420FA2-20

£9,430.00* (exc. VAT)

5fwd/1rev automatic and electric shift (ESP)

Specification Details
ClassificationUtility work ATV
Engine420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder
CarburationPGM-FI 34mm
IgnitionFull transistorized with electronic advance
StarterElectric/Recoil
TransmissionAutomatic ESP push-button; 5 speed and reverse
DriveFront and rear driveshafts with TraxLok™ and torque-sensing front differential.
Front SuspensionIndependent double-wishbone; 170mm travel
Rear SuspensionSwingarm with single shock; 170mm travel
Power SteeringYes
Front Brakes190mm dual hydraulic discs
Rear Brake160mm sealed mechanical drum
Front tyres24 x 8-12
Rear tyres24 x 10-11
Fuel Capacity (l)14.7L, incl. 4.9L reserve.
Bore x Stroke (mm)86.5 x 71.5
Dimensions - Length (mm)2103
Dimensions - Width (mm)1204
Dimensions - Height (mm)1176
Wheelbase (mm)1270
Seat Height (mm)855
Ground Clearance (mm)183
Towing Capacity (kg)384
Front Rack Capacity (kg)33 pounds
Rear Rack Capacity (kg)66 pounds
