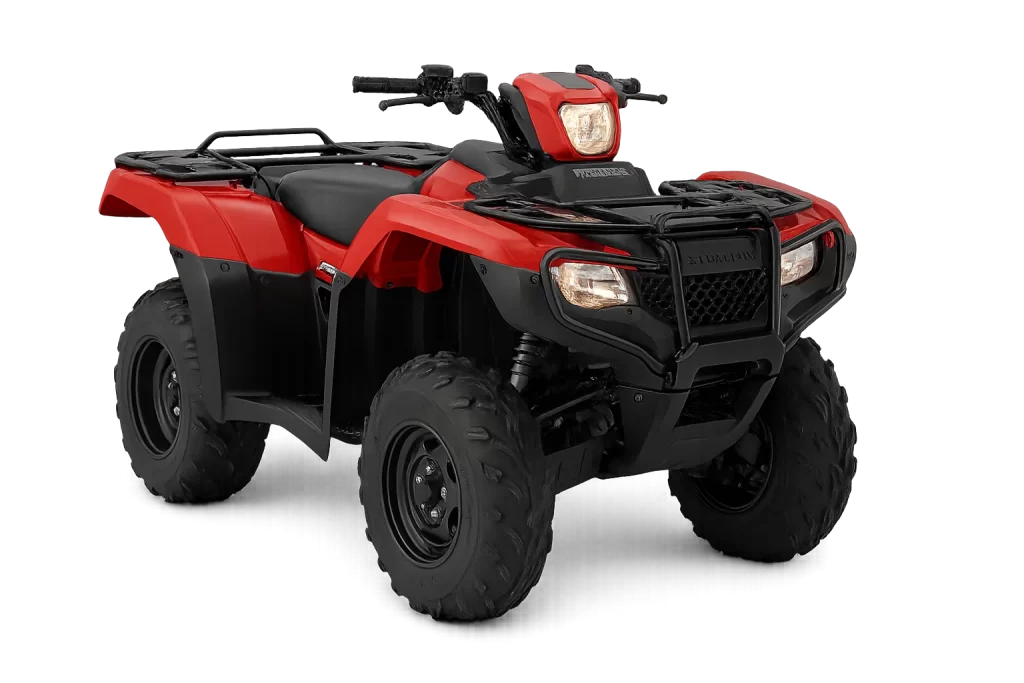

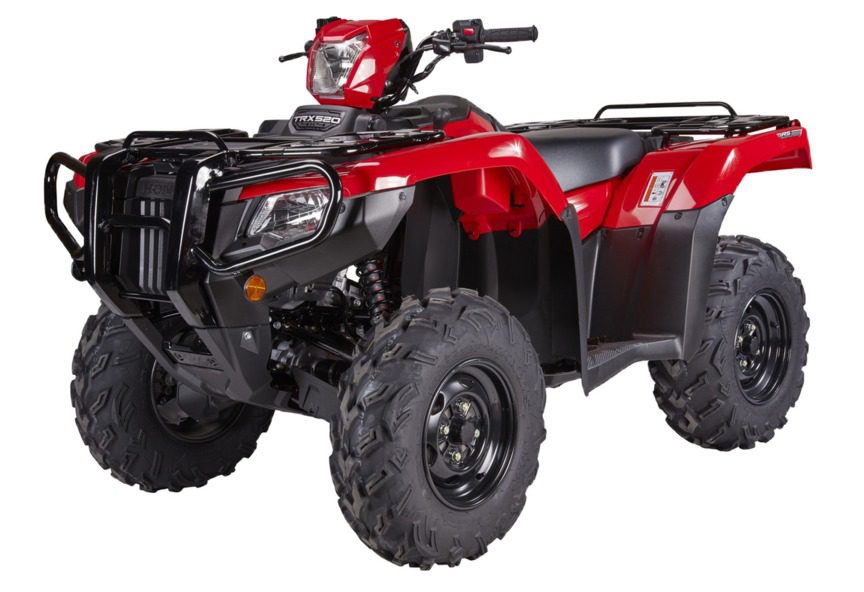

Honda TRX520 Foreman – Power and Reliability for the Toughest Jobs
The Honda TRX520 Foreman is built for serious work. Its 518cc fuel-injected engine delivers the extra torque you need for heavy towing and demanding terrain. With a durable chassis, strong suspension, and Honda’s reputation for reliability, it’s the ATV you can depend on for long days, rough ground, and hard graft in all conditions.
Our manufacturer’s warranty keeps you moving.
Whether you’re using it for farming, gamekeeping, forestry, equestrian or snowclearing, your Honda ATV will quickly become an essential part of your daily routine. You’ll rely on it in all weathers, on all terrain and for an amazingly wide range of jobs. So a problem with your new ATV is the last thing you’ll want, but with Honda’s reputation for reliability, it’s the last thing you can expect.
That’s why we guarantee the build quality of our ATVs with an industry-leading manufacturer’s warranty.
Specification | Details |
---|---|
Classification | Heavy duty ATV |
Engine | 518cc liquid cooled, wet-sump, longitudinally mounted OHV single-cylinder four-stroke |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorised with electronic advance |
Starter | Electric |
Transmission | Auto clutch with electric shift; 5 speed and reverse |
Drive | 4wd direct drive-shafts with TraxLok® switchable 2wd/4wd and locking front differential |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Swingarm with single shock; 185mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 14.7L, incl. 4.9L res. |
Bore x Stroke (mm) | 96.0 x 71.5 |
Dimensions - Length (mm) | 2103 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1220 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 869 |
Ground Clearance (mm) | 190 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 99 pounds |
Rear Rack Capacity (kg) | 187 pounds |
Specification | Details |
---|---|
Classification | Heavy duty ATV |
Engine | 518cc liquid cooled, wet-sump, longitudinally mounted OHV four-stroke single-cylinder |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorised with electronic advance |
Starter | Electric |
Transmission | Auto clutch with manual shift; 5 speed and reverse |
Drive | 4wd Direct driveshafts with TraxLok™ switchable 2wd/4wd and locking front differential. |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Swingarm with single shock; 185mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 170mm sealed mechanical drum |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 14.7L, incl. 4.9L res. |
Bore x Stroke (mm) | 96.0 x 71.5 |
Dimensions - Length (mm) | 2185 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1237 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 924 |
Ground Clearance (mm) | 248 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 99 pounds |
Rear Rack Capacity (kg) | 187 pounds |
Specification | Details |
---|---|
Classification | Heavy duty ATV |
Engine | 518cc Liquid-cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorised with electronic advance |
Starter | Electric |
Transmission | Automatic Dual Clutch Transmission; 5 speed + reverse and high/low |
Drive | 4wd Direct drive-shafts with TraxLok® switchable 2wd/4wd and locking front differential |
Front Suspension | Independent Double wishbone; 185mm travel |
Rear Suspension | Dual A-Arm (IRS); 215mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 170mm single hydraulic disc |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 14.7L, incl. 4.9L res. |
Bore x Stroke (mm) | 96.0 x 71.5 |
Dimensions - Length (mm) | 2185 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1237 |
Wheelbase (mm) | 1293 |
Seat Height (mm) | 922 |
Ground Clearance (mm) | 248 |
Towing Capacity (kg) | 599 |
Front Rack Capacity (kg) | 99 pounds |
Rear Rack Capacity (kg) | 187 pounds |
Specification | Details |
---|---|
Classification | Heavy duty ATV |
Engine | 518cc Liquid-cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorized with electronic advance |
Starter | Electric |
Transmission | Auto clutch with manual shift |
Drive | 4wd Direct drive-shafts with TraxLok® switchable 2wd/4wd and locking front differential |
Front Suspension | Independent double wishbone; 185mm travel |
Rear Suspension | Dual A-Arm (IRS); 215mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 170mm single hydraulic disc |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 14.7L, incl. 4.9L res. |
Bore x Stroke (mm) | 96.0 x 71.5 |
Dimensions - Length (mm) | 2185 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1240 |
Wheelbase (mm) | 1293 |
Seat Height (mm) | 919 |
Ground Clearance (mm) | 251 |
Towing Capacity (kg) | 599 |
Front Rack Capacity (kg) | 99 pounds |
Rear Rack Capacity (kg) | 187 pounds |
Specification | Details |
---|---|
Classification | Side X Side |
Engine | 518cc liquid cooled single cylinder four-stroke |
Carburation | Electronic fuel injection (PGM-FI), 36mm throttle body |
Ignition | Full-transistorized type with electronic advance |
Starter | Electric |
Transmission | Five-speed automatic transmission with AT/MT modes with paddle shifting and reverse. Two drive modes include 2WD and 4WD |
Drive | Direct front and rear driveshafts |
Front Suspension | Independent double-wishbone; 5.8 inches of travel |
Rear Suspension | Independent double-wishbone with preload adjustability; 5.9 inches of travel |
Power Steering | No |
Front Brakes | Dual 200mm hydraulic discs |
Rear Brake | 170mm hydraulic disc |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-12 |
Fuel Capacity (l) | 15.5L incl. 4.2L reserve |
Bore x Stroke (mm) | 96.0mm x 71.5mm |
Dimensions - Length (mm) | 2667 |
Dimensions - Width (mm) | 1270 |
Dimensions - Height (mm) | 1808 |
Wheelbase (mm) | 1854 |
Seat Height (mm) | 703 |
Ground Clearance (mm) | 216 |
Towing Capacity (kg) | 454 |
Front Rack Capacity (kg) | N/A |
Rear Rack Capacity (kg) | 204 (Bed Capacity) |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorised with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Automatic Dual Clutch Transmission (DCT) with auto-shifting or electric shift |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Dual A-Arm (IRS); 215mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | Single hydraulic 170mm disc |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.9L, incl. 4.9L reserve. |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2146 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1203 |
Wheelbase (mm) | 1295 |
Seat Height (mm) | 901 |
Ground Clearance (mm) | 246 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorised with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Front and rear driveshafts with TraxLok™ and torque-sensing front differential. |
Front Suspension | Independent double-wishbone; 170mm travel |
Rear Suspension | Swingarm with single shock; 170mm travel |
Power Steering | No |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.9L, incl. 4.9L reserve. |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2103 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1174 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 855 |
Ground Clearance (mm) | 183 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorised with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Front and rear driveshafts with TraxLok™ and torque-sensing front differential. |
Front Suspension | Independent double-wishbone; 170mm travel |
Rear Suspension | Swingarm with single shock; 170mm travel |
Power Steering | No |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.9L, incl. 4.9L reserve. |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2103 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1174 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 855 |
Ground Clearance (mm) | 183 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorised with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Automatic Dual Clutch Transmission (DCT) with auto-shifting or electric shift |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Dual A-Arm (IRS); 215mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | Single hydraulic 170mm disc |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.9L, incl. 4.9L reserve |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2146 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1203 |
Wheelbase (mm) | 1295 |
Seat Height (mm) | 901 |
Ground Clearance (mm) | 246 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
Specification | Details |
---|---|
Classification | Utility work ATV |
Engine | 420cc liquid cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder |
Carburation | PGM-FI 34mm |
Ignition | Full transistorized with electronic advance |
Starter | Electric/Recoil |
Transmission | Automatic ESP push-button; 5 speed and reverse |
Drive | Front and rear driveshafts with TraxLok™ and torque-sensing front differential. |
Front Suspension | Independent double-wishbone; 170mm travel |
Rear Suspension | Swingarm with single shock; 170mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 24 x 8-12 |
Rear tyres | 24 x 10-11 |
Fuel Capacity (l) | 14.7L, incl. 4.9L reserve. |
Bore x Stroke (mm) | 86.5 x 71.5 |
Dimensions - Length (mm) | 2103 |
Dimensions - Width (mm) | 1204 |
Dimensions - Height (mm) | 1176 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 855 |
Ground Clearance (mm) | 183 |
Towing Capacity (kg) | 384 |
Front Rack Capacity (kg) | 33 pounds |
Rear Rack Capacity (kg) | 66 pounds |
